Introduction of peristaltic pump
The peristaltic pump series is a new type of multi-functional and multi-purpose industrial pump developed by absorbing foreign advanced technology. The pump has the characteristics of no seal, no leakage, strong self-priming ability, simple structure and convenient operation and maintenance. Suitable for conveying a variety of viscosity, density, corrosive, abrasive fluid materials. It can be used in petroleum, chemical, water treatment and mining, gold smelting, medicine, ceramics, paper and other industries.
Product working principle
The transmission drives the rotor to rotate, and the two pressure rollers distributed on the rotor at 180° continuously roll along the hose in the peristaltic pump casing to crush the hose, under the force of its own elasticity and side guide, the tube is restored to its original state. At this time, a high vacuum is generated in the tube to suck the material into the lumen, and the fluid entering the lumen is discharged from the tube under the accompanying pressure, so that the material is continuously sucked in and discharged.
Product information table
The series product flow rate is 2.5m 3 / h ~40 m 3 / h , the transmission power is 2. 2~1 5 k w , and the single-tube type and three-tube type pump can be designed according to customer needs. The temperature of the hose is generally below 80 °C. If the temperature of the material exceeds 80 °C, please specify when ordering, so that the hose can be made of suitable materials.
Features
1.Except for the pump tube, the fluid does not contact with any part of the pump.
2.No seams, nowhere to leak fluid.
3.No valve required.
4.Self-infusion capacity (the suction head of some models reaches 30 feet (8. 8 meters))
5.Can transport liquids, gases, solids, or multiphase mixtures.
6.A complete pump tube can be used from the inlet to the outlet.
7.Some pump tubing materials can withstand high temperature sterilization.
8.Easy to clean after use, saving time and eliminating the accumulation of debris or bacteria.
9.Quickly change the product, just replace the pump tube to avoid cross infection.
10.Can be used anywhere(insensitive to direction).
11.The flow adjustment range is large.
12.There are many types of pump tubing available.
13.There are many types of drives/motors to choose from.
14.Easy to repair.
15.There are no need for too many spare parts.
16.Can be applied to multi-channel pumping applications.
Basic peristaltic pump: BT 100, BT300, BT600
Typical Applications: Fermentor Support/Drying Equipment Package/Cell Culture Fluid Filtration/Solar Polysilicon Production Process Addition

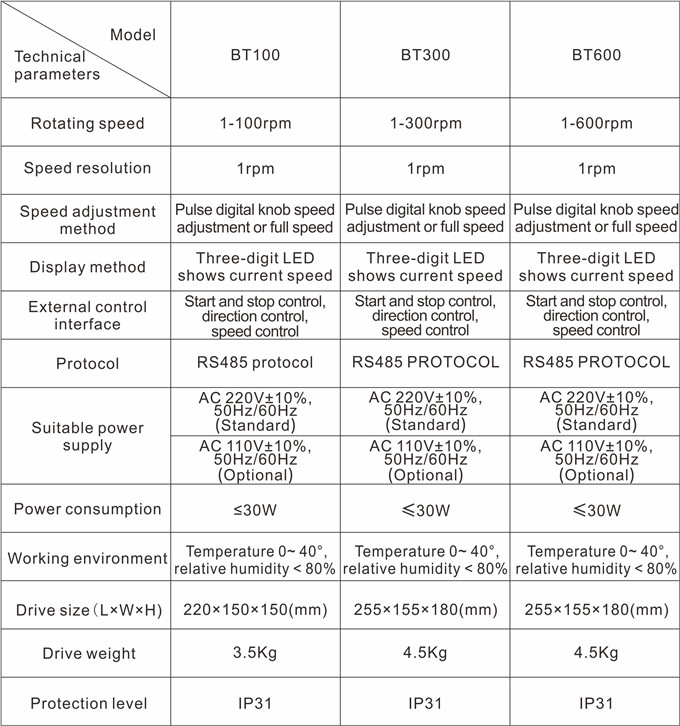

Product information table
Main functions and features
1.Using "dual CPU" control, drive and control separation, fast calculation speed, stable operation and high transmission accuracy .
2.A variety of pump heads can be installed: YZ1 5, YZl S- 11- Y, YZ25, BZ25
3.Pulse digital knob speed control, easy to operate, high control precision, long service life, ensuring high precision liquid transfer.
4.With full speed button for filling and emptying.
5.High torque, low power consumption, multiple pump heads can be connected in series, or multi-channel pump heads can be installed to meet different applications.
6.With power-down memory function, storing data in time, safe and reliable .
7.Optional time allocator,0-5V, 4- 20 mA, both signals can remotely control the speed of the pump, and can also control the start and stop of the pump through the switch signal.
8.Optional accessories: time allocator, foot switch

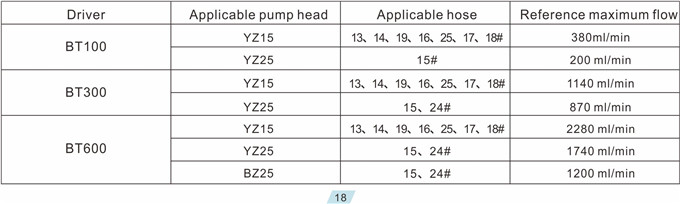

Selection guide
Flow type peristaltic pump:BL100,BL300
Typical Applications: Low flow perfusion/Chlorine analyzer injection/Spectrometer injection/Automatic sampling in density testing

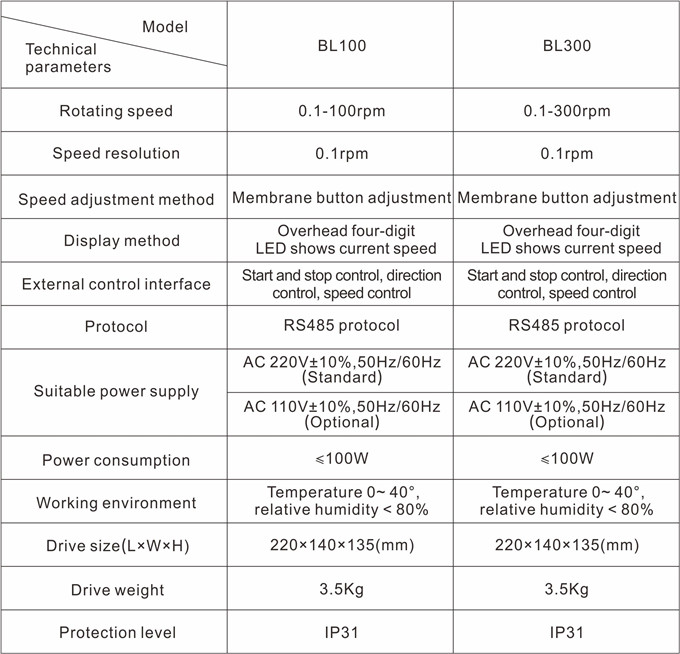

Product information table
Main functions and features
1.Stepper motor driven by multiple subdivision modes with high precision
2.Smooth operation in combination with elastic connection
3.Exquisite stainless steel housing for easy cleaning and corrosion protection
4.LED digital tube displays instant speed or flow
5.Pipe number selection and flow correction function
6.With power-down memory function, it can automatically save the operating parameters when the power was last lost.
7.Remote control by RS-485 communication, up to 1. 2 km.
8.Optional accessories: time allocator, foot switch

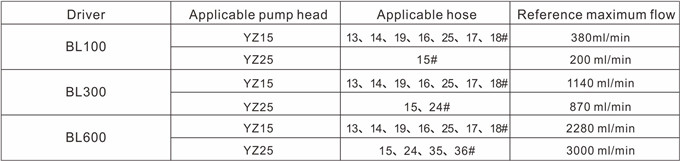

Selection guide
Industrial peristaltic pump: ZT600
Typical applications of ZT600: Low flow perfusion/Chlorine analyzer injection/Spectrometer

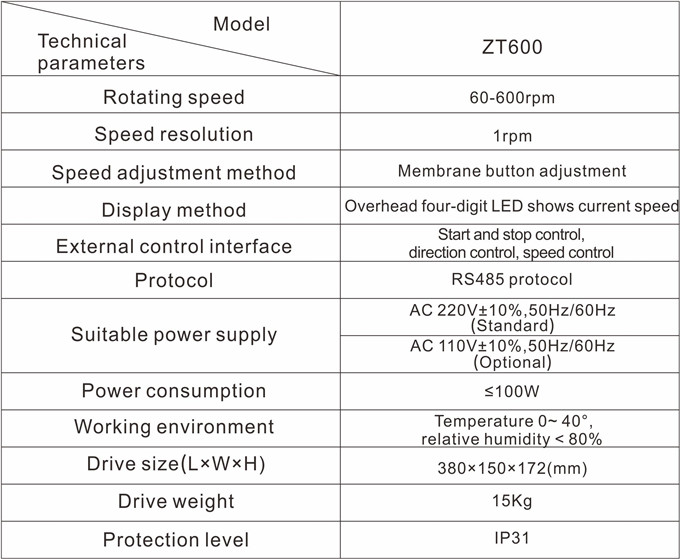

Product information table
Main functions and features
1.High-power DC brushless servo motor drive, silent operation, maintenance-free, with speed feedback device
2.Speed resolution is 1r p m , precise control
3.Pump head can be installed: YZ35 (aluminum), YZ35 (POM)
4.Suitable for industrial production, high flow delivery
5.External control equipment such as foot switch can be connected according to user requirements
6.Can be combined with the sub-assembly controller to achieve the filling function
7.With power-down memory function, storing data in time, safe and reliable .
8.High torque, low power consumption, double pump heads can be connected.
Selection guide
Industrial peristaltic pump: QT500
Typical application of QT500: hazardous fluid transport / electro-silver chemical transport / membrane filtration

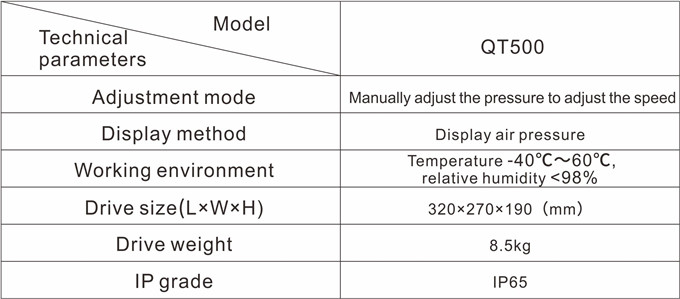

Product information table
Main functions and features
1.Powered by a pneumatic motor, with high torque and no sparking factors, suitable for most industrial environments.
2.The chassis is made of stainless steel and is highly resistant to corrosion.
3.The high degree of protection is suitable for harsh occasions such as industrial explosion-proof and anti-corrosion.
Selection guide
F series peristaltic pump
Intelligent version of the distribution type peristaltic pump with large LCD display, membrane button plus encoder operation, with flow mode, timing presentation mode and fixed speed quantitative mode, can also display the current instantaneous flow, or simultaneously display total flow; preset dispensing volume, allocation time, interval time, number of allocations, distribution speed, dynamic display of working status, allocation of data and time; intelligent calibration and online fine-tuning. It can be connected to the foot switch or receive the switch signal for remote control. It is suitable for large liquid volume, high efficiency and
high precision filling. .
Typical application
Water needle dispensing
Freeze-dried powder dispensing
Diagnostic reagent dispensing

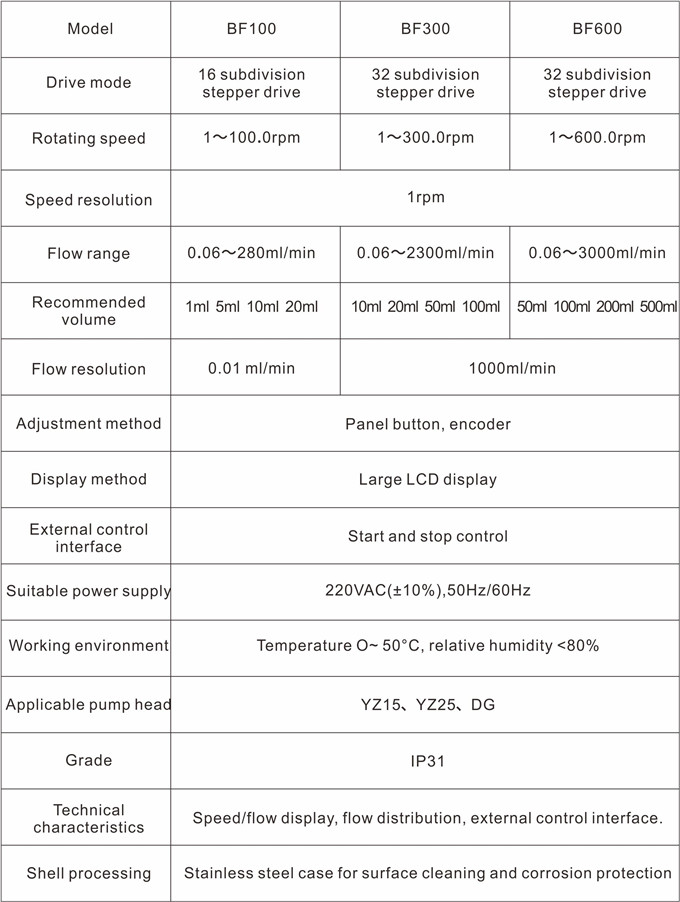

Product information table
Main functions and features
1, High-precision liquid distribution function, the highest precision can reach ± 0.5%.
2, Large LCD display, Chinese and English menu, calibration operation software, easy to operate.
3, Exquisite stainless steel chassis is easy to clean and anti-corrosion.
4, With power-down memory function, can automatically save the operating parameters when the last power failure.
5. There are three control modes: manual, automatic and external control.
6, Optional accessories: foot switch
FBD600-I explosion-proof peristaltic pump
Composition
Model:FBD600-I
Quantity: 1pcs
Composition: 1. One explosion-proof motor 2. Pump head YZ15, YZ25 3. Sanitary silicone tube

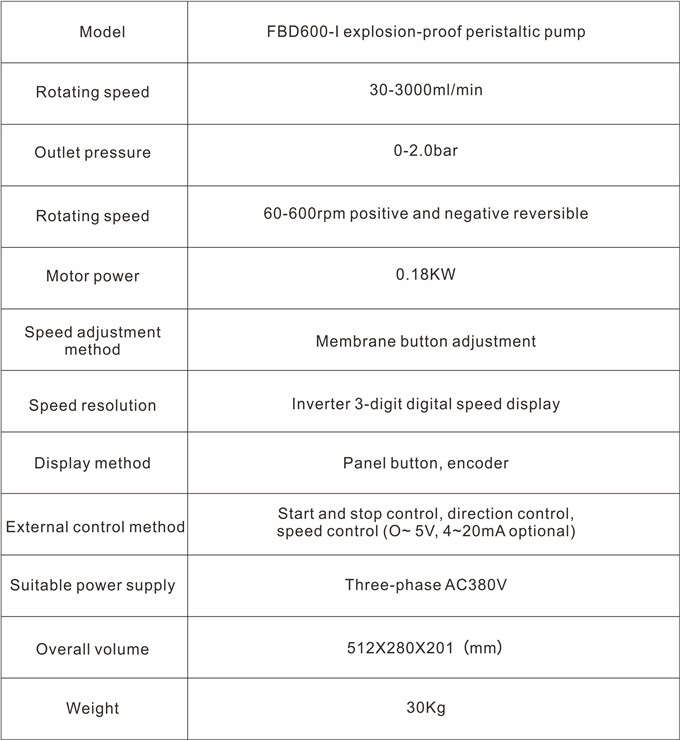

Product information table
Structural features
1.PPS reinforced plastic pump casing, SS3 0 4 roller, explosion-proof motor drive
2.Simple and stable structure
3.When the inverter is used, the speed can be adjusted, and the external control interface can also be used for automatic control.
4.Optional accessories: frequency converter (used in non-explosion-proof areas)

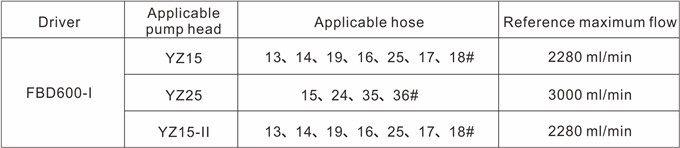

Flow range
FBD600-III explosion-proof peristaltic pump
Composition
Model:FBD600-III
Quantity:1pcs
Composition: 1. Explosion-proof motor 2. Pump head YZ35/3/AL 3. Sanitary silicone tube

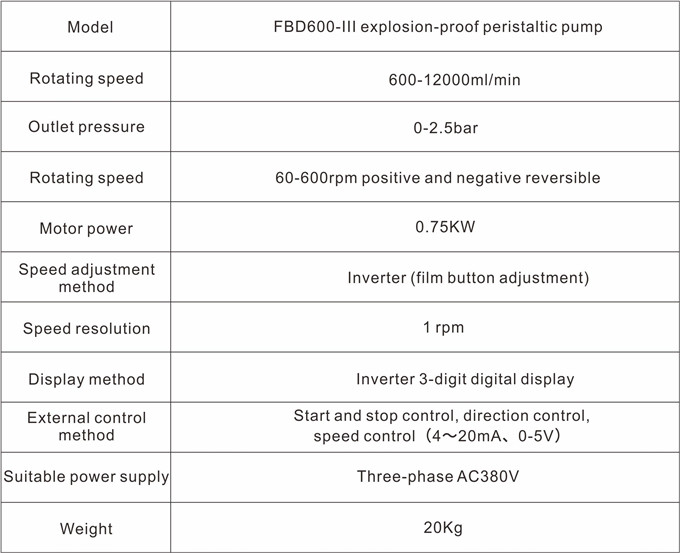

Product information table
Structural features
1.Aluminum alloy pump casing, SS304 roller, large-power explosion-proof motor drive
2.Simple and stable structure
3.When the inverter is matched, the speed can be adjusted manually, or the external control interface can be used for automatic control.
4.Suitable for industrial production, high flow delivery
5.Optional accessories: frequency converter

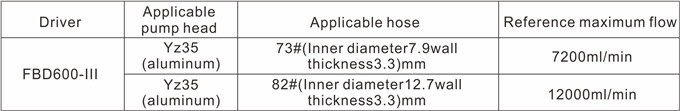

Flow range
